API 6D Valve tan Pipeline Valve

API-6D valvessaray balbula ya atagey so integridad ya uusaren pian nakontrol so agos (igapo, itunda, itunda), ibiig iray seksion na tubo, mangamper ed backflow, tan mantinien so kaligenan na operasyon na tubo, ya ginawa parad saray sistema na langis, gas, tan tubo unong edAPI Spec 6D("Specification for Pipeline Valves"), tan inyaplika manlapud saray linya na panagtipon anggad saray tubo na transmisyon. Kaslakan ya iiyan iratan ed saray block valve lokasyon, istasyon, metering skid, tan saray pasilidad na pigging yanapanmatalkan ya inkaapag-apagtan kaukolan so naisip ya operasyon.

Saray API-6D valves et atagey so integridad na pipeline valves ya ginawa unong edAPI Spec 6D(Spesipikasyon parad saray Balbula na Tubo). Saray kaslakan a klase et kaiba sosaray balbula na gate, balbula na bola, check valves, plug valves, tan air release / air-vacuum valves.Octal Pipemangiiter na full-specification API-6D valves ed saray materyales tan configuration ya ginawa paradklase na presyon, laknab na kabaleg, koneksion ed sampot, tan kondisyon na serbisyo.

Saray API 6D pipeline valves et kaslakan ya iiyan ed pasen ya kaukolan na saray operatormangibiig, mangiyalis, o manprotekta ed saray dalan na agosdiad peteg iran kondisyon na operasyon-andukey iran linya, masimpit iran layout na istasyon, mabetbet a panagbisikleta, tan sensitibo iran bintana na panagsara.

• Transmission & gathering pipelines (block valves / sectionalizing points):Diad andukey a linya, saray block valve et uusaren pianmansara ed sakey a seksion na tubopian naapiger na saray tripulante so spool ed leksab na ilog, salatan so filter element ed station tie-in, odino i-isolate so leak ya ag-ontunda so interon linya. Sarayan balbula et nayarin mansiansia ed paway ed loob na pigaran taon insan kaukolan ya mankimey a napanmatalkan legan na antikey a panaon na panagsara. Kanian saray managsaliw et mangiyaansakit ednaisip ya operasyon, suston klase/sampot na presyon, tan malinew ya ebidensya na pangawat. Say Octal Pipe et mansiansian aka-lock so specification ya masakbay (type/class/connection/materials) tan mangiiter na ITP-aligned test records (shell/seat tests, leakage checks, traceability) pian say mangaawat ya grupo et maples ya maka-clear na inspeksyon no onsabi so balbula ed lugar.
• Saray istasyon na kompresor tan saray metering skid:Diad saray istasyon na compressor, saray balbula et uusaren pianmangibiig ed saray tren na kagawaanparad panmintina-pansara so upstream/down isolation, pangamper ed backflow, tan pangiter na ligtas ya depressurization antis ya onggapo so trabaho. Diad metering skids, onsusuportad saray balbulapanagsaliw na linya tan panagmintina na panag-isolateno iner saray melag ya lingo ed pangi-install et nayarin pansengegan na atraso. Saray gate valve et kaslakan ya uusaren parad full-open/full-close ya isolation ed saray manunan run, bangta saray check valve et manproprotekta sumpad reverse flow ed baetan na nanduruman pressure zone. Diad sarayan kaliberliber, saray proyekto et mabetbet ya mangilalanor na dakel a modelo na balbula ed sakey a pakete, kanian say agmanguman-uman a panag-tag, pangi-packing-list matching, tan kompleton test documents et mamawas ed commissioning hold-ups tan saray sangsangan nipaakar ed "aliwan bengatla".
• Pig launcher/receiver stations:Say panag-pigging et mandedependi ed saray balbula pianibiig so launcher/receiver barrel, asikasoen so pangipara na presyon, tan lukasan/saraan a tampol iray seksion legan ya ilulukas tan alaen so baboy. Saray ball valve o plug valve et mabetbet ya napili parad maples ya quarter-turn isolation ya say paulit-ulit ya panagbisikleta et kabiangan na normal ya operasyon. Diad sayan setup, importante so malet ya shut-off tan napanmatalkan ya operasyon lapud saray delay et mangaapekta ed interon eskedyul na pigging. Susuportaan iya na Octal Pipe panamegley na kalinew na configuration (type/class/ends/materials), nirekord ya ebidensya na pressure/leakage, tan saray dokumento na kargamento ya aka-align ed packing list-pian say site team et makaalis manlapud panag-inspeksion ya anggad pangi-install ya ag-onkulang na panaon ed saray kulang ed papeles.

• Body Casting / Forging (Mipara ed kabaleg tan klase na presyon)

Parad angkakabaleg-bore tan mas atagey-pressure ya balbula, saray laman et kaslakan yapalsipikado; parad mas melag iran sukat,imbantak iran bangkayet kaslakan ya uusaren ya walay kontroladon kalidad tan sakop na inspeksion. I-verify na Octal Pipe iray detalye na rota na laman ed valve tag / dokumento antis ya ibulos.Ehemplo:Parad Class 900 ya pakete, saray managsaliw et mabetbet ya onkekerew na palson - ya ebidensya na laman diadpabrikaipaway iray rekord.

• Precision Machining (Panseal ed saray tapew tan inka-install)

Saray yurongan, port, tan bores et ginawa ed masimpit iran toleransya parad malet ya panag-seal tan naisip ya torque. Antis ya ipawit, nengnengen na Octal Pipe iray manunan fit-up ya aytem ya iyaansakit na saray procurement teams-lupa-ed-lupa, kondisyon na flange face (odino BW end prep), bore alignment, tan sealing surface finish-kanian say pangipuesto ed pasen et agla kaukolan ya gawaen lamet.

• Seat / Stem / Sealing Configuration (Clear base valve type)

Saray ball valve et manguusar na spherical ball seats; saray gate valve et manguusar na wedge/flexible wedge; saray check valve et manguusar na swing odino dual plate; saray plug valve et manguusar na tapered ya desinyo na plug. Saray opsyon ed stem et kaiba so ontatagey vs non-ontatagey a stem (gate),blowout-proof stem, tan multi-ring packing. No iner so nibaga,live-loaded packingodino saray lantern-ring configurations so inyaplika parad mas istrikton panangontrol ed leakage.Ehemplo:Parad saray metering skid, saray managsaliw et mabetbet ya onkekerew na packing configuration notes diadmanggagawadatasheet pian napagaan so pangawat.

Saray espisyal ya mas angkakabaleg tan klase et naala ed kada pankaukolan na proyekto; mitongtong ed Octal Pipe engineering parad custom spec.

Ball Valve

Saray ball valve et quarter-turn valves ya mabetbet ya uusaren paradmaples ya pansara tan pan-isolatediad oil & gas tan pipeline systems, lalo la ed saray istasyon, block valve points, tan pigging lines.

Saray klase na balbula na bola

Manleletaw a Balbula na Bola: DN15–DN200 (NPS 1/2–8), PN10–PN100 (Class 150–600)

Cast Side-Entry Ball Valve: DN20–DN1500 (NPS 2–60), PN10–PN420 (Class 150–2500)

Forged Side-Entry Ball Valve: DN20–DN1500 (NPS 2–60), PN10–PN420 (Class 150–2500)

Fully Welded Ball Valve: DN20–DN1500 (NPS 2–60), PN10–PN420 (Class 150–2500)

Atagey-Entry Ball Valve: DN20–DN1500 (NPS 2–60), PN10–PN420 (Class 150–2500)

Pinilit ya Pansara na Balbula na Bola: DN20–DN900 (NPS 2–36), PN10–PN420 (Class 150–2500)

DBB Double Ball Valve (Double Block & Bleed): DN20–DN1200 (NPS 2–48), PN10–PN420 (Class 150–2500)

Saray Opsyon (Kaslakan)

Materyales:carbon steel, alloy steel, stainless steel

Mansampot na koneksyon:flanged, butt weld, threaded, socket weld

Operasyon:manual, electric, pneumatic, hydraulic

Cryogenic Valve (Low Temperature Service)

Saray cryogenic valves et adesinyo parad napanmatalkan ya shut-off tan isolation ed abeban-temperature media service, ya walaan na saray configuration ya matukoy parad cold-duty pipeline tan station applications.

Cryogenic Valve Range

Kabaleg:DN50–DN900 (NPS 2–NPS 36)

Pressure Rating:PN10-PN100 (Class 150-Class 600)

Temperatura: -196℃anggad +100 degree

Manunan Materyales:abeban-temperatura ya carbon steel, stainless steel

Mansampot na Koneksyon:flange, butt weld

Operasyon:manual, electric, pneumatic, hydraulic

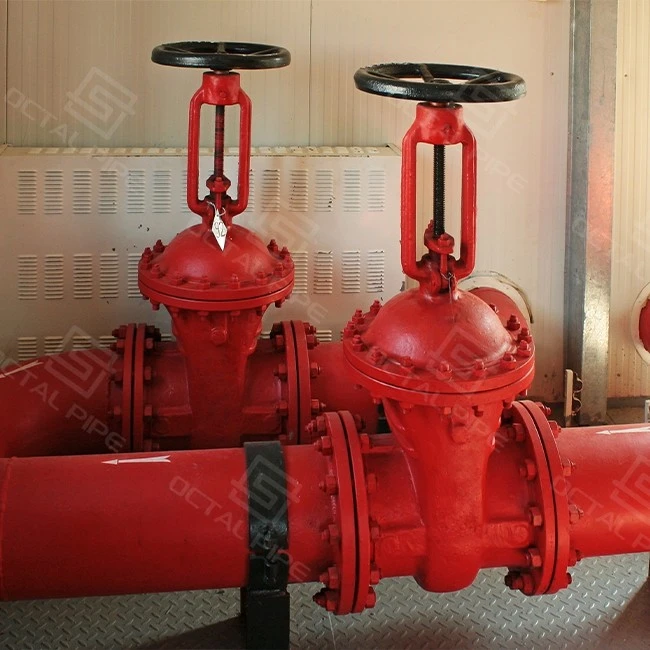

Gate Valve

Saray gate valve et kaslakan ya uusaren paradfull-lukas/full-sara ya inkaapag-apagdiad oil & gas tan pipeline systems, ya kaslakan ya uusaren ed saray lokasyon na mainline block valve tan station piping ya kaukolan so napanmatalkan ya shut-off.

Klase na Gate Valve

Forged Gate Valve: DN10–DN100 (NPS 3/8–NPS 4), PN10–PN420 (Class 150–Class 2500)

Cast Gate Valve: DN50–DN1500 (NPS 2–NPS 60), PN10–PN420 (Class 150–Class 2500)

Slab Gate Valve: DN50–DN1200 (NPS 2–NPS 48), PN10–PN420 (Class 150–Class 2500)

Saray Opsyon (Kaslakan)

Materyales:carbon steel, alloy steel, stainless steel

Mansampot na koneksyon:flanged, butt weld; walay threaded tan socket weld ya parad forged gate valves

Operasyon:manual, electric, pneumatic, hydraulic

Globe Valve

Saray globe valve et kaslakan ya uusaren paradregulasyon na agos tan panag-throttlediad oil & gas tan pipeline systems, ya kaukolan so malet ya kontrol tan naulit ya shut-off ya performance.

Saray Klase na Globe Valve

Forged Globe Valve: DN15–DN100 (NPS 1/2–4), PN10–PN420 (Class 150–2500)

Cast Globe Valve: DN50–DN400 (NPS 2–16), PN10–PN250 (Class 150–1500)

Pressure Seal Globe Valve: DN50–DN600 (NPS 2–24), PN10–PN420 (Class 150–2500)

Saray Opsyon (Kaslakan)

Materyales:carbon steel, alloy steel, stainless steel

Mansampot na koneksyon:flanged, butt weld

Operasyon:manual, electric, pneumatic, hydraulic

Check Valve

Saray check valve et uusaren paradpanangisebel ed pawil na agosdiad oil & gas tan pipeline systems, ya ontutulong pian naprotektaan iray kagawaan tan napansiansia so malet ya direksion na agos ya anggapoy manual ya operasyon.

Nengnengen iray klase na balbula

Swing Check Valve: DN15–DN1500 (NPS 1/2–60), PN10–PN250 (Class 150–1500)

Axial Flow Check Valve: DN50–DN1200 (NPS 2–48), PN10–PN250 (Class 150–1500)

Pressure Seal Check Valve: DN50–DN600 (NPS 2–24), PN10–PN420 (Class 150–2500)

Dual Plate Check Valve: DN50–DN1200 (NPS 2–48), PN10–PN100 (Class 150–600)

Saray Opsyon (Kaslakan)

Materyales:carbon steel, alloy steel, stainless steel

Mansampot na koneksyon:flanged, butt weld; threaded & socket weld ya wala parad swing check valves; wafer option parad dual plate check valves

Operasyon:automatiko

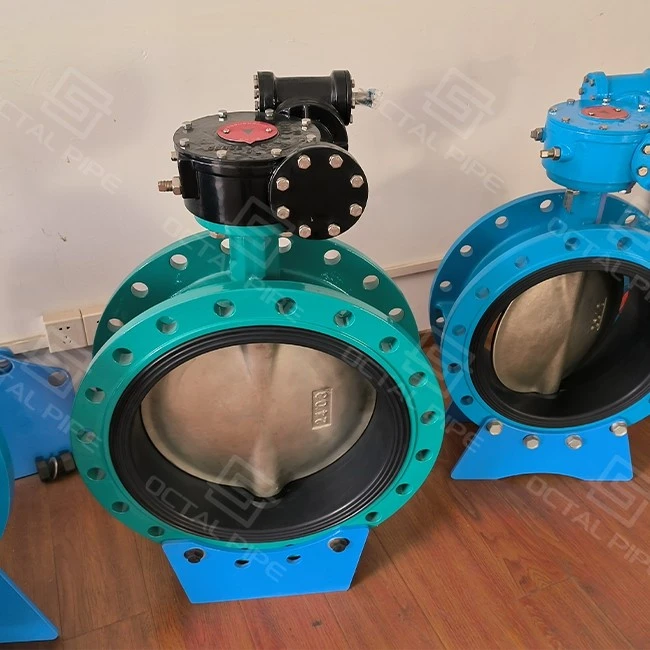

Butterfly Valve

Saray butterfly valves et quarter-turn valves ya kaslakan ya uusaren paradpangibiig tan panangontrol ed agosdiad oil & gas, utility, tan pipeline systems-lalo la no kaukolan so kompakton istruktura tan maples ya operasyon.

Saray klase na balbula na kulibangbang

Concentric (Centerline) Butterfly Valve: DN50–DN1200 (NPS 2–48), PN10–PN25 (Class 150)

Doble Eksentrikon Balbula na Kulibangbang: DN50–DN4500 (anggad NPS 48), PN10–PN100 (Class 150–600)

Triple Eccentric Butterfly Valve: DN20–DN4500 (anggad NPS 48), PN10–PN100 (Class 150–600)

Saray Opsyon (Kaslakan)

Materyales:carbon steel, alloy steel, stainless steel

Mansampot na koneksyon:flange, lug, wafer (unong ed klase); wala so butt weld parad triple eccentric ya desinyo

Operasyon:manual, electric, pneumatic, hydraulic

Control Valve

Saray control valve et uusaren paradregulasyon na agos tan panag-throttlediad proseso tan pipeline systems, ya kaslakan ya uusaren eddanum, singaw, larak, tan gasserbisyo.

Saray Klase na Balbula na Kontrol

Balanced Cage Control Valve: DN40–DN600 (NPS 1 1/2–24), PN16–PN420 (Class 150–2500)

Floating Control Ball Valve: DN15–DN200 (NPS 1/2–8), PN16–PN100 (Class 150–600)

Triple Eccentric Control Butterfly Valve: DN50–DN1600 (NPS 2–64), PN16–PN100 (Class 150–600)

Pneumatic Double-Disc Gate Control Valve: DN50–DN1000 (NPS 2–40), PN16–PN150 (Class 150–900)

Saray Opsyon (Kaslakan)

Materyales:carbon steel, alloy steel, stainless steel

Mansampot na koneksyon:flanged, butt weld, wafer (unong ed klase)

Operasyon:pneumatic / electric (diad aplikasyon)

• Malet ya panagselyo / abeban panag-awas:Makasuplay so Octal Pipemetal-yuronganodinoatagey-performance soft-seatsaray configuration pian nasumpal so API 598 / API 6D seat leakage requirements. Say materyales na yurongan tan say desinyo na sealing et pinili base ed media, temperatura, tan saray iilaloan ya pakasara, ya ontulong pian nabawasan so ag-implanon pakasara ed saray istasyon tan block valve points.
• Atagey a presyon tan temperaturan pakayari:Depende ed klase tan konpigurasyon na balbula, say Octal Pipe et onsusuportad saray klase na presyon ya anggadKlase 2500no iner so onaplika. Say pampili na materyales tan yurongan et nayarin i-align ed kondisyon na serbisyo a singa say abeban-a temperatura odino serbisyo na gas ya mas atagey, ya walay dokumentasyon ya mipara ed sakop na proyekto.
• Say inkadukey tan ag-inkayadyari:Parad mas atagey a -peles o serbisyo ya sensitibo ed partikulo, saray opsyon a singa saypinalet iran trim, proteksion ed tapew na tapew, tan saray maabig ya dalan na agos so makatulong pian nabawasan so pakasulong. Saya so nagkalalo lan makanakana paradball valves tan plug valvesno iner say lokal ya erosion et nayarin mangapekta ed performance na sealing legay ilalabas na panaon.
• Abawasan so panmintina:Say serbisyo ed lawak na lawak et napasimpli panamegley na praktikal iran pilien a desinyo a singa saysaray aka-bolt ya laman, saray yurongan/trim ya nayarin isalet, tan opsyonallive-loaded stem packing. Ipapasen na Octal Pipe ya malinew irayan detalye na configuration diad saray selection notes pian nakumpirma na saray managsaliw so iilaloan dan panmintina antis iran man-order.
• Kaligenan tan panumbok ed saray estandarte:Saray balbula et nibaga ya ontumbokISO 14313saray kakaukolanen ed kaligenan na balbula na tubo, a walaan na saray paraan pian naprebentaan so itataktak a singa say mabiskegpanag-impake na sangatan saray uksoyan ed panagselyo pian nasuportaan so panangontrol ed emission na saray ombatik no nakaukolan. Sarag na Octal Pipe ya i-align irayan kakaukolanen ed ITP na proyekto tan ilaktip iray matukoy ya rekord na verification ed document package.

Pansubok tan Pansukimat
Say inspeksion et gagawaen ed silong na proyekton ITP tan kaslakan et kaiba to:

• Nasubaybayan so materyales:Mill Test Reports (MTRs) tan saray sertipiko na kemikal tan mekanikal parad saray hilaw a materyales
• Inspeksyon ed panag-cast / panag-forge:RT / UT parad saray kritikal a laman, tan say inspeksion ed depekto ed tapew no iner so nibaga
• Inspeksyon ed sukat:flow area, port alignment, face-to-face dimensions, flange drilling/flatness, tan end prep checks
• Pressure testing:shell test tan seat test (tan backseat test no wala) ya walay nirekord ya resulta kada API 6D test pressures
• Veripikasyon na leakage:say itatagey na yurongan tan say itatagey na laman et aka-align ed nibaga ya klase na itatagey (alimbawa, Klase I, II, tan arum nira)
• Inspeksyon na coating / surface finish:inspeksion ed loob tan paway na pinta/anti-corrosion unong ed saray kakaukolanen ed kaliberliber
• NDT (no nibaga):Saray report na UT / RT / MT / PT parad saray castings/forgings ya akakonekta ed valve tag tan saray rekord na kargamento

Ehemplo:Parad sakey a kritikal ya isolation valve package, saray managsaliw et nayarin onkerewmanggagawaSaray report na NDT parad bangkay tan say anengneng ya pressure test edpabrika, insan i-file so kompleton test package kaiba so packing list parad pakaawat na inspeksion.

• Kompleton sakop, sakey a sakop na pananap:Say Octal Pipe et mangiiter na API-6Dgate, bola, tsek (swing/dual plate), plug, tan air/vacuum valves, ya mansaklaw ed saray estandarten klase tan saray proyekto.
• Suporta ed panagpili ya mamawas ed peligro na RFQ:Makatulong so Octal Pipe pian nakumpirmaklase, klase na presyon, koneksion ed sampot, materyal na laman, tan opsyon ed yurongan/trimbase ed media, temperatura, tan pankaukolan ed panag-operate-kanian saray specs et aka-lock antis ya man-order.
• ITP-ready testing + traceable documents:Iter ya walay ebidensya ya infile na managsaliw a singa sayMTR/heat traceability, shell/seat pressure test reports, leakage verification, dimensional checks, tan NDT reports no nibaga, ya mipara ed saray valve tag tan packing list.
• Panagpasadya + panangontrol ed pangiter:Susuportaan toy custom ends tan trim upgrades, ya say packing/labeling et inorganisa unong ed line item pian maples so pakaawat na inspeksion tan nabawasan so mix-ups.

Pian mipara ed nanduruman media tan kondisyon na operasyon, saray API 6D pipeline valves et nayarin i-configure ed:

• Say pampili na materyales ed lamanmipara ed temperatura tan kaliberliber ya manlalaok
• Panpili na yurongan(soft seat vs metal seat) ya aka-align ed saray kakaukolanen ed leakage tan temperatura
• Konpigurasyon na panagselyo na sangatan say uksoyan na panag-impake ya mitunosan ed kondisyon na serbisyo
• Say panagpili na bore(full bore vs reduced bore) no nibaga ed plano na operasyon na tubo

No say proyekto et walaan na nanduruman kakaukolanen a materyales (alimbawa, carbon steel parad mainline tan stainless parad espisipikon seksion na corrosion), say panagmarka tan panagpareho na dokumento et mansiansian parepareho pian nabawasan so lingo ed pakaawat.

FAQ





01.Anto ran dokumento so ilaktip no mansasaliw na API 6D valve?

Kaiba ed saray kaslakan ya iterMTR/heat traceability, API 6D pressure test reports (shell/seat), panag-verify na leakage, insanpantutunosan na listaan ​​na panag-impake. Say NDT tan saray rekord na sukat et nayarin iter no akasulat ed ITP.

Panon ak ya manpili na API 6D ball valve tan API 6D gate valve parad pipeline isolation?

SayAPI 6D ball valveet mabetbet ya napili parad maples ya quarter-turn isolation tan mabetbet ya operasyon (istasyon, pigging lines), bangta sayAPI 6D gate valveet kaslakan ya uusaren parad full-open/full-close mainline isolation diad saray kawalaan na block valve. Say unor a panagpili et mandedepende ed karakel na operasyon, media, tan klase na presyon.

03.Nayari kasin iter iray balbula na API 6D ya walaan na nanduruman koneksion ed sampot ed sakey a proyekto?

On. Saray balbula na API 6D et nayarin iter edflanged (ASME B16.5/B16.47), butt weld (BW), socket weld (SW), odinothreaded (NPT/BSP)saray sampot pian mipara ed estandarte na koneksyon na tubo tan paraan na pangipaalagey.

04.Panon mon nabawasan so pakaatrasado ed panag-inspeksion parad saray order na multi-item valve?

Kada balbula et aka-tag tan aka-match na sakey-ed-sakey edlistaan ​​na panag-impakeinsanpakete na dokumento, ya mansiansian parepareho so klase na presyon, kabaleg, materyal, tan saray report na test-pian mas maples ya na-verify na saray mangaawat ya grupo iray aytem tan nabawasan so peligro na ag-inkayadyari.
