Tubo na Boiler

Tubo na Boileret sakey ya anggapoy tahi ya asero ya tubo ya ginawa parad atagey-temperatura tan atagey-pressure ya serbisyo. Say tubo na boiler ya tatawagen met ya Chrome-Moly Pipe (Chromium-Molybdenum Alloy Steel Pipe) ya materyal et kaslakanCr-Mo low-alloy steelginawa parad serbisyo ya atagey-temperatura/atagey-pressure, ya ditan et say biskeg na creep tan resistensya ed oxidation so mangokontrol ed inka-mapanmatalkan na lifecycle. Diad praktis, say pansaliw na "boiler pipe" et grade-driven (alimbawa, P11/P22/P91), lapud say desinyo na alloy + say heat treatment so mandetermina ed andukey a panaon ya performance ed silong na steam tan hot fluid duty.

Diad pangiyarum na chromium (Cr) tan molybdenum (Mo) ed asero, sarayan tubo et mangiyoopresi na matalonggaring a biskeg ed temperatura, resistensya ed onkurong, resistensya ed oxidation, tan resistensya ed corrosion. Malaknab iran uusaren ed saray importantin kagawaan ya manguusar na singaw, ambetel iran pluido, tan saray makaderal a media, a singa saray boiler na planta na kuryente, petrochemical heaters, heat exchanger, tan pressure pipelines.
Lapud dakel lan taon ya eksperiensya to ed suplay na proyekto ed interon mundo, say Octal Pipe et manggagawa tan mangiiter na saray tubo na boiler ya ontutumbok ed saray estandarte na ASTM, ASME, DIN, EN. Saray grado et mansaklaw ed P1-P92 tan P122, ya mangiseguro na solusyon parad amin a bengatla manlapud saray kombensional a boiler anggad saray advanced ultra-supercritical units.

• ASTM A335 / ASME SA335: Ferritic alloy steel seamless pipes parad serbisyo ed atagey a temperatura
• ASTM A213 / ASME SA213: Seamless alloy steel pipes parad boiler tan superheater ya aplikasyon
• DIN EN 10216-2: Saray tubo ya asero ya anggapoy tahi to parad saray gagala na pressure

Kaslakan ya Grado tan Aplikasyon:

• P1, P2– Abeban-grado na alloy parad serbisyo ed kapegleyan na temperatura
• P11, P12, P22– Malaknab ya uusaren ed power & petrochemical high-temperatura steam lines
• P5, P9, P21– Pinaaligwas ya resistensya ed panag-apag parad mairap iran kemikal ya kaliberliber
• P91, P92, P122– Advanced high-performance grades parad ultra-supercritical boilers ya andukey so bilay tan mas mabiskeg

Saray Espesipikasyon na Tubo na Boiler (Kabaleg, Iskedyul, Sampot tan Subok)

Diad saray dokumento na proyekto,"boiler tube steel grade"mabetbet ya ontutukoy edASTM A213grado na tubo, legan ya"boiler pipe"kaslakan ya reperensyaASTM A335grado na tubo. Say A213 et mansaklaw na seamless alloy boiler/superheater/heat-exchanger tubes, tan say A335 et mansaklaw na seamless ferritic alloy-steel pipe parad high-temperature service-related material families, balet ta duma so nibaga ed BOMs tan inspection packages.

Pian napaliisan so pakawetwet ed grado ed panagsaliw tan pangibulos na materyales, usaren irayan praktikal a totontonen:

Ganggan 1 - I-align so ngaran na grado ed klase na aytem:isulatT-gradoparad A213 ya tubo tanP-gradoparad saray tubo na A335. Saya so mangamper ed saray "suston materyal, lingon sertipiko" ya ag-iawat legan na EPC review.

Ganggan 2 - Usaren so cross-references bilang giya labat, aliwan kasandi:saray proyekto et kaslakan ya nanenengnengP11 ↔ T11insanP22 ↔ T22bilang parehon pamilya na serbisyo (pipe vs tube designation), balet kaukolan nin siansia ya tawagen na PO so suston estandarte tan porma na produkto.

Ganggan 3 - Agmo ilalaok so andi-tahi ya tubo tan saray kakaukolanen ed tubo ya anggapoy tahi:Saray A213 tube items et mabetbet ya akakonekta ed saray totontonen ed panaggawa na heater/boiler coil tan mas malet iran kakaukolanen ed surface/ID, bangta saray A335 piping items et kaslakan ya akasentro ed pressure boundary tan piping code compliance.

Ganggan 4 - Say panagpili na grado et nipaakar ed andukey a panaon ya biskeg na temperatura:mas atagey-grado na creep a singa sayP91/P92et kaslakan ya nibaga no say desinyo et mankaukolan na mas maabig ya andukey a panaon ya biskeg ed atagey a temperatura, aliwan say "mas atagey ya ani." Kumpirmaen so eksakton grado tan kondisyon na heat treatment ya kakaukolanen na code/spec.

Rule 5 - Ibalikas so inspeksion/heat treatment package, aliwan say grado labat:parad saray pakete na materyales na tubo na boiler, kaukolan na saray managsaliw so kalinew edkondisyon na panagtambal ed petanginsansakop na NDT(kada proyekton ITP) lapud saraya so direktan mangapekta ed pangawat ed serbisyo ya atagey-temperatura.

Rule 6 - No say listaan ​​na kagawaan et "tube," ag mo isalet na "pipe" (tan vice versa):anggano mipara so sukat, say estandarte/rota na sertipikasyon et duma tan nayarin pansengegan na ag-inkayadyari ed pakaawat.

Tip ed panagsaliw:No mangipawit na RFQ, ilaktip so line item wording ya eksakto ed listaan ​​na kagawaan (alimbawa, "ASTM A213 T22 boiler tube" odino "ASTM A335 P22 boiler pipe"), insan idagdag so OD×WT, karukey, tan saray nakaukolan a dokumento-saya so sankapelesan a paraan pian napaliisan so ag-inkayadyari na sertipikasyon diad pangipaway na materyal.

• Nikadkaduman Atagey-Kabiskeg na TemperaturaLapud Cr-Mo alloy reinforcement, saray Boiler Pipes et makapansiansia na malet ya biskeg tan inka-rigid da ed 600℃tan onsulok ni, ya ag-onkupas ed petang. Saya so mangiseguro na andukey, ligtas, tan malet ya operasyon ed silong na atagey a presyon na singaw tan ambetel a pluido.
• Creep Resistance & Extended Service LifeSay plastic deformation (creep) ed silong na andukey ya atagey-temperatura tan atagey-presure et kaslakan ya paraan na inkagba. Saray Chrome-Moly pipes, ya walay optimized Cr-Mo ratios tan heat treatment, et walaan na ekselentin creep resistance, ya mamapawala na samplon libon oras ya tuloytuloy ya serbisyo ya anggapoy dimensional instability. Saya so mamawas ed saray ag-akaeskedyul ya panagsara tan gastos ed panmintina.
• Superior Oxidation & Corrosion Resistance Chromium (Cr)manporma na makapal a proteksion ya oxide layer, ya mamalemew ed oxidation ed singaw tan ambetel a gas; Say Molybdenum (Mo) et mamaaligwas ed resistensya sumpad sulfur- tan chlorine- ya walaan na media. Lapud saya et mas andukey so bilay na saray tubo ed mairap iran kaliberliber a singa saray power boiler, refinery heater, tan chemical reactor.
• Maong ya Weldability tan Fabrication Compatiblediad automated welding, on-site welding, tan nanduruman filler methods, pian naseguro so mabiskeg tan anggapoy depekto na saray kasukasuan. Lapud maong so makina (pan-bending, cutting, bevelling), sarayan tubo et mainomay ya iyapasakey ed komplikadon sistema tan saray custom-engineered ya kagawaan.
• Malaknab a Grado tan Internasyonal iran Estandarte Manlapud P1/P2saray makatipid ya solusyon ed P91/P92 ya abayag lan bilay, saray grado et nayarin pilien base ed temperatura, presyon, tan medium type, ya ibalanse so performance tan gastos. Sigpot ya sertipikado ed ASTM, ASME, EN, DIN, sarayan produkto et mainomay ya awaten ed saray proyekto ed interon mundo.
• Pinaabig ya Gastos ed Siklo na BilayAnggaman mas atagey so inmunan pinansyal nen say carbon steel, say Chrome-Moly Boiler Pipes et mangiter na mas andukey a bilay na serbisyo, mas daiset a siklo na panmintina, tan mas maabig ya epektibo na kagawaan, kanian mas abeba so total cost of ownership (TCO). Saraya so nagkalalo lan matukoy parad panagpawala na kuryente, panagpino, tan saray industriya na enerhiya ya ditan et importante so uptime tan reliability.

Say superyor ya performance na Chrome-Moly Boiler Pipes et manlalapud alloy ya desinyo.

• Chromium (Cr)mangiiter na resistensya ed oxidation tan corrosion
• Molybdenum (Mo)mamapaaligwas ed biskeg na atagey a temperatura tan ag-onkukurang
• Carbon (C), Manganese (Mn), tan Silicon (Si)malet ya kontrolado
• Trace elements(V, Nb, N, tan arum nira) ed atagey iran grado (P91, P92) et mamaaligwas ed inkapekder tan andukey a biskeg

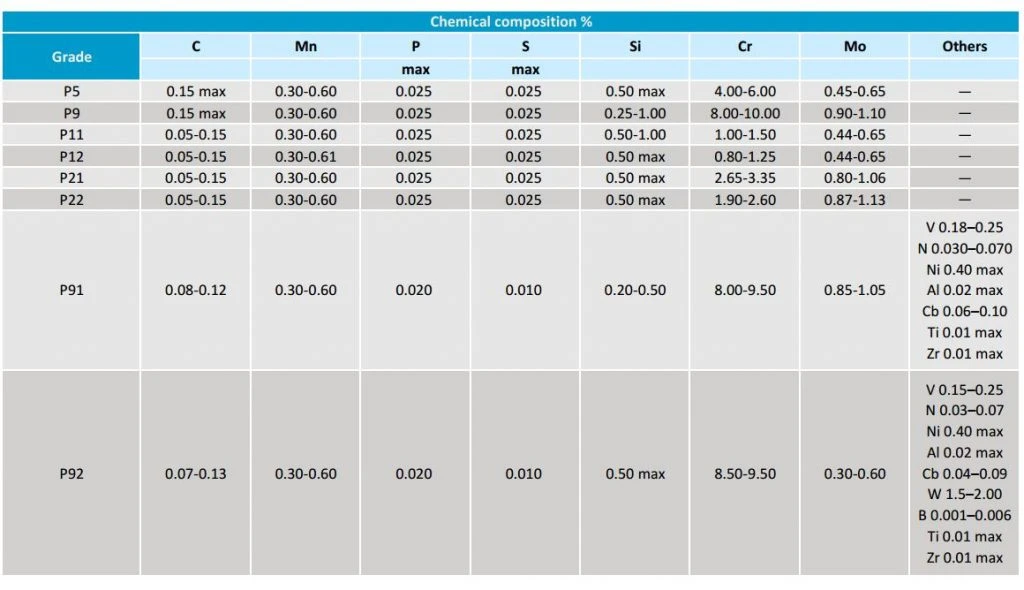

Saray detalyadon balor na kemikal a komposisyon et nanengneng ed table ed leksab.

Say mekanikal ya performance et importante ed atagey-temperatura tan atagey-pressure ya kaliberliber.

• Say biskeg na panag-awitseguroen ton ag-onkapuy iray tubo no na-stress no atagey so temperatura
• Biskeg na Panag-animangiiter na magenap a kaligenan ed silong na pirmin pressure
• Atagey-performancesaray grado a singa say P91/P92 et mangiyoopresi na mas atagey a biskeg tan panagsungdo nen say kombensional a P11/P22, ya mamapalaknab na panaon na inspeksion tan mamaaligwas ed pakawalaan na sistema

Nengnengen so table ed leksab parad detalyadon datos na mechanical property.

Say insulasyon na tubo na boiler et kaslakan ya iiyan paradpanangontrol ed petang tan proteksion ed saray totoo, balet nayarin mangiter met na baleg a peligro ed panagmatalek no say danum et abuloyan ya onloob tan mansiansian akakulong. Diad dakel a tanaman,boiler pipe boxingontutukoy edboxing/lagging so tubo ya walay insulasyon tan metal ya jacketing (cladding)pian naprotektaan so sistema na insulasyon legan na operasyon tan panmintina. Say detalye na pansaliw na "make-odino-break" et aliwan say kapal na insulasyon labat-no ag ingenpanangontrol ed iloob na danum + panag-agus/panangipaway na bentilasyon, lapud say akakulong ya danum et nayarin mamaandarcorrosion ed silong na insulasyon (CUI)diad paway na tubo, ya mabetbet ya ag nanengneng anggad walay outage.

Pian mas nagawaan iyan seksion, nia ray manunan punto ya kaslakan ya ibabaga ed saray totoon proyekto:

• Ipaliwawa so gagala na insulasyon tan say temperatura:say kapal tan materyales et napili manlapud operating temperature tan heat-loss targets, balet ontan met ed no kasin nanengneng na linyapanagbisikleta(start/stop) ya mangibubuga na danum ed saray kasukasuan.
• Ibaga so sistema na jacketing, aliwan say "insulation" labat:materyal (aluminum/stainless/galvanized), kapal, tan no panon ya nabubuo iray tahi/overlap; saray makapuy ya overlap et magmaliw ya lolooban na danum.
• Saray detalye na panangontrol ed iloob na danum (maslak et ag-anengneng):kaukolan so selyadon longitudinal seams, saradon sampot no matukoy, tan malinew iran totontonen nipaakar ed saray penetration (saray suporta, gripo na instrumento, bracket).
• Pilosopiya na drain/vent:ibaga no iner so nayarin itakas na danum-abeban-punton drain, weep holes, odino vent gaps-lapud say "perpekton akasara" a sistema ed peteg a bilay et mabetbet a magmaliw apatit na danumkayari na aderal.
• Saray kritikal a lugar ya nepeg ya tawagen ya malinew:saray suporta tan clamp na tubo, saray siko/tees, saray abeban punto, tan saray punto na sampot-saraya so mabetbet a CUI hotspots lapud manbemben iratan na danum tan mankokonsidera na stress.
• CUI risk temperature band awareness:saray linya ya mankikimey ed kaslakan ya CUI risk ranges (mabetbet ya ambetel pian mansiansian basa balet aliwan ambetel pian maples ya onmaga) et kaslakan ya mankaukolan na mas malet ya disiplina ed jacketing tan planon inspeksion ya access.
• Inspection-friendly boxing:mankaukolannaekal iran seksionodino inspeksion iray bintana ed saray pasen ya atagey so peligro pian na-verify na akankayarian so kondisyon ed paway ya anggapoy sigpot ya strip-off legan na kada outage.
• Panagparaan na tapew tan panag-coat ed silong na insulasyon:no say proyekto et manguusar na coating ya walad silong na insulation, ibaga so klase na coating tan say basiyan na panagparaan ed tapew; say insulation et ag makasaliw na proteksion ed corrosion.
• Maintenance reality clause:ilaktip iray kriterya na pangawat ed pangapiger na aderal ed jacketing, lapud saray field dents/tears et kaslakan tan magmaliw iran long-term leak initiator no ag-ira naapiger a tampol.

• Boiler/HRSG high-temperature headers tan connection spools:

Diad HRSG tan boiler islands, saray header tan spool connections et mankikimey ya walay atagey ya temperatura, kaiba lay vibration tan thermal gradients. Say kimey ed uma et mabetbet ya mangilalanor na masimpit iran bintana yafit-up accuracy tan disiplina na pamaakaran na weldmandesisyon no kasin ontumbok so eskedyul. Say tuloytuloy ya OD/WT tan suston kondisyon na panagtambal na petang- so manunan kontrol ed panagsaliw.

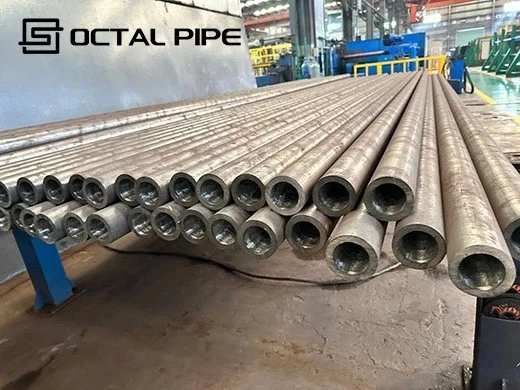

• Superheater / reheater outlet piping ya asingger ed hurnoan (radiant zone exposure):

Say tubo ya asingger ed hurnoan et walaan na atagey a temperatura na metal, oxidation scaling, tan ag-inkaparpareho na petang. Say tua ed trabaho et say insulation tan jacketing et mabetbet ya naekal tan niiyan lamet legan na maintenance, kanian say panangontrolexternal oxidation tan CUI risket kabiangan na siklo na bilay, aliwan say inmunan pinilin materyal labat.

• Say tubo na pampainit ya pinapaway na refinery tan saray loop ya pangiyalis na ambetel ya larak:

Sarayan sistema et mankikimey ed atagey a temperatura ed andukey a panaon, ya say temperatura et onkukurang legan na turnaround tan saray proseso ya onkukurang. Saray kaslakan ya isyu ed pantratrabahoan et kaiba so flange/fit-up stress manlapud thermal growth tan say pakaderal na insulation ya pansengegan na external corrosion. Saray materyales ya alloy boiler pipe et uusaren pian mansiansian mabiskeg so temperatura tan nabawasan so ag-implanon panangapiger.

• High-pressure process piping tan konektadon pressure systems (valve stations / reactor tie-ins):

Diad saray high-pressure units, say piping ed kaliberliber na saray reactor, compressor, tan valve stations et makakanengneng na saray mekanikal a karga manlapud saray suporta, yegyeg, tan mabetbet ya access ed maintenance. Say panagsaliw et kaslakan ya mangidadanetdokumentadon ebidensya na test, traceability, tan weldability controls lapud antokaman ya kulang ya rekord et nayarin makapaatrasado ed pangigapo.

Kontaken natan

FAQ





T: Anto ray detalye na boiler pipe?

A:Saray detalye na tubo na boiler et nepeg ya ipaliwawa bilangOD × kapal na padir × karukey × grado × estandarte na pananguley, tan say end type (BE/PE/T&C) tan say nakaukolan ya release scope (heat treatment/NDT/hydrotest no onaplika). Saray kaslakan a suplay ed sayan kobre na pahinaOD 10.3–1422 mm, WT Mas abeba odino mipara ed 150 mm, insan6 m / 12 m / 20FT / 40FT (anggad 18 m).

T: Antoy materyales na tubo na boiler?

A:Say materyales na tubo na boiler et kaslakan yaChrome-Moly (Cr-Mo) ferritic alloy seamless steelparad serbisyo ya atagey-temperatura/atagey-presyon, no inerbiskeg na iyakar tan resistensya ed oksidasyonmanmaneho na lifecycle reliability; saray kaslakan a grado et kaibaASTM A335 P1-P92 (tan P122)depende ed trabaho.

Q: Boiler tube material grade / boiler tube steel grade - antoy pidumaan to ed boiler pipe grade?

A:Say "boiler tube steel grade" et kaslakan ya ontutukoy edASTM A213 T-grades (tubing), bangta say boiler piping et mabetbet yaASTM A335 P-grades (pipe); nayarin mipara iratan ya pamilya na alloy (alimbawa,P11↔T11, P22↔T22) balet nepeg ya mipara ed klase na BOM item pian napaliisan so ag mipara na sertipikasyon legan ya ipaway.

Q: Say tubo na boiler ya onlelereg ed paway - antoy sankabalegan ya sengegan tan panon ya naprebentaan itan?

A:Say "pan-leak ed paway" ed saray hot line et mabetbet ya nisiglaot edcorrosion ed silong na insulasyon (CUI)lapud inloob na danum tan akakulong so danum ed silong na insulasyon/boxing; say prebension et say pangibaga na saray detalye na jacket paradpanangontrol na danum + panag-agus na danumtan pansiansiaen so inspeksion ya access ed saray suporta/abeban punto imbes ya tratoen so insulation bilang nikadkaduman kanonotan.
